Getting Started with Riak and .NET

Earlier in the year, I started playing around with MongoDB using .NET and wrote up a Getting Started guide. Now it’s Riak’s turn.

Nutshell

Riak is a distributed, schemaless, data-type agnostic key-value “NoSQL” database written primarily in Erlang.

Check out the “What is Riak?” page on Basho’s wiki.

Riak does not run on Windows so you’ll need to choose your supported OS of choice to install Riak on. Having used Ubuntu before for MongoDB, I went down that route so my notes here are oriented that way. So, after getting a Ubuntu VM set up…

Step 1

Install the latest custom .deb package, as per the Basho guide.

Step 2

Before you start Riak up, you need to tweak the configuration in Riak’s app.config file. Follow the Basic Cluster Setup guide, but note that when you update the IP address for the http interface per those instructions, also make the same change to the pb_ip config value - this is for the Protocol Buffers interface. For performance, I wanted to use the Protocol Buffers interface instead of the HTTP REST API and had some initial problems as the pb_ip configuration was still set to 127.0.0.1.

You then need to edit vm.args, per the setup guide.

Step 3

Now you’re ready to fire up Riak. Run:

$ riak start

Then make sure all is well using:

$ riak ping

If all is well, it will respond with “pong”.

Step 4

Now, back in the comfort of Windows (my Linux-fu is seriously lacking) we’re ready to get going. There is no official .NET client library at time of writing, but Basho list a few community contributed projects. When I first looked, only 2 were listed and these appeared to be inactive with no updates since last year. It was a bit disappointing to see the lack of support for those of us in the .NET world. I then discovered CorrugatedIron, very hot-of-the-press, under development by OJ Reeves (Twitter | Blog) and Jeremiah Peschka (Twitter | Blog).

The simplest way to get everything you need to get going is via NuGet.

Nu-what?

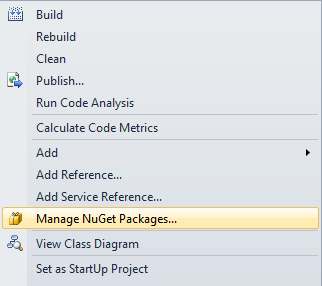

NuGet. It’s a Visual Studio extension that you can download from here. Once installed, fire up VS and create a new .NET 4.0 Framework project. Then in the Solution Explorer, right click the project and select “Manage NuGet Packages…”.

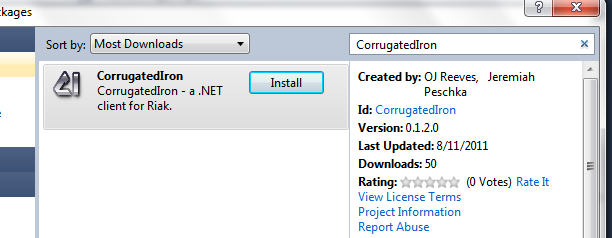

In the dialog, search online packages for: CorrugatedIron.

Click Install, and it will download all the assemblies/dependencies you need. When it’s finished, you’ll see you have references to CorrugatedIron, Newtonsoft.Json and protobuf-net.

Open up app.config and you’ll see some initial example config for CorrugatedIron. Configure that accordingly to point at your running Riak node. For example, my Riak node is running on a VM called “Riak1”, with the REST interface listening on port 8098 and the protocol buffers interface listening on port 8087:

<?xml version="1.0" encoding="utf-8"?>
<configuration>
  <configSections>
    <section name="riakConfig" type="CorrugatedIron.Config.RiakClusterConfiguration, CorrugatedIron" />
  </configSections>
  <riakConfig nodePollTime="5000" defaultRetryWaitTime="200" defaultRetryCount="3">
    <nodes>
      <node name="Riak1" hostAddress="Riak1" pbcPort="8087" restScheme="http" restPort="8098" poolSize="20" />
    </nodes>
  </riakConfig>
</configuration>

Step 5

A quick check to make sure you can communicate with your Riak node:

static void Main(string[] args)
{
    IRiakCluster cluster = RiakCluster.FromConfig("riakConfig");

    IRiakClient client = cluster.CreateClient();

    RiakResult result = client.Ping();

    Console.WriteLine(result.IsSuccess);
}

Fingers crossed, and you will get a successful response! From here, you can start playing around with Riak from .NET and find your way round the client.

CorrugatedIron is still very new, so keep an eye on the site and/or on the GitHub repository. Give it a whirl, and be sure to let the guys know how you get on - I’m sure they’d be keen to hear from those using it and the project deserves support from those of us in the .NET world.

Useful tool

It’s useful to have some form of GUI over Riak so you can actually “see stuff”. I’ve been using Rekon which I found useful to get up and running with Riak. See the download/install instructions on it’s GitHub repository page.

Hopefully, this post will help anyone else wanting to give Riak a try from a .NET perspective!
